AI Assistance in Testing Your User Interface Consistency

A button that moves off-screen on mobile, a heading that wraps differently in Safari, or a modal hidden behind another element may appear minor. Yet these inconsistencies make a product feel unreliable and can prevent users from completing important tasks.

Finding such defects manually has become difficult. Modern interfaces contain hundreds of components, responsive breakpoints, user states, themes, browsers, and device combinations. A page that looks correct in one environment may break in another without producing a functional test failure.

AI-assisted visual testing helps teams examine these variations at scale. It captures rendered interfaces, compares them with approved versions, and highlights meaningful changes for human review. This guide explains how the approach works, where AI provides real value, and how to choose between commercial platforms and open-source alternatives.

What Is UI Consistency Testing?

UI consistency testing verifies that an interface maintains its intended appearance and behaviour across application states and supported environments. It examines elements such as typography, colours, spacing, component alignment, responsive layouts, images, and content placement.

The testing may compare:

• A new application version with an approved baseline
• The same page at different viewport sizes
• Component states such as default, hover, disabled, loading, and error
• Results from different browsers and operating systems
• Light and dark themes
• Different languages, data volumes, and user roles

Visual regression testing is an important part of UI consistency testing, but the terms are not completely interchangeable. Visual regression testing detects appearance changes between software versions. UI consistency testing has a broader goal: determining whether the experience remains coherent across the entire product and its supported platforms.

How AI-Assisted Visual Testing Works

The process begins with a baseline—the last approved appearance of a page or component. When a test runs again, the tool captures a new screenshot called a checkpoint or snapshot. Its comparison engine examines the new image against the relevant baseline and highlights differences.

A typical workflow looks like this:

1. An automated test opens a defined page or component state.
2. The test waits for the interface, fonts, images, and data to finish rendering.
3. A screenshot is captured at a specified browser and viewport size.
4. The platform selects the correct approved baseline.
5. Its comparison engine identifies visual differences.
6. A reviewer accepts the intended changes or rejects the unexpected ones.
7. Approved results become the reference for future runs.

The important distinction is how the images are compared.

Traditional tools usually evaluate pixels and apply a configurable tolerance. This approach is deterministic and can be inexpensive, but harmless differences in anti-aliasing, shadows, font rendering, or subpixel positioning may create excessive alerts.

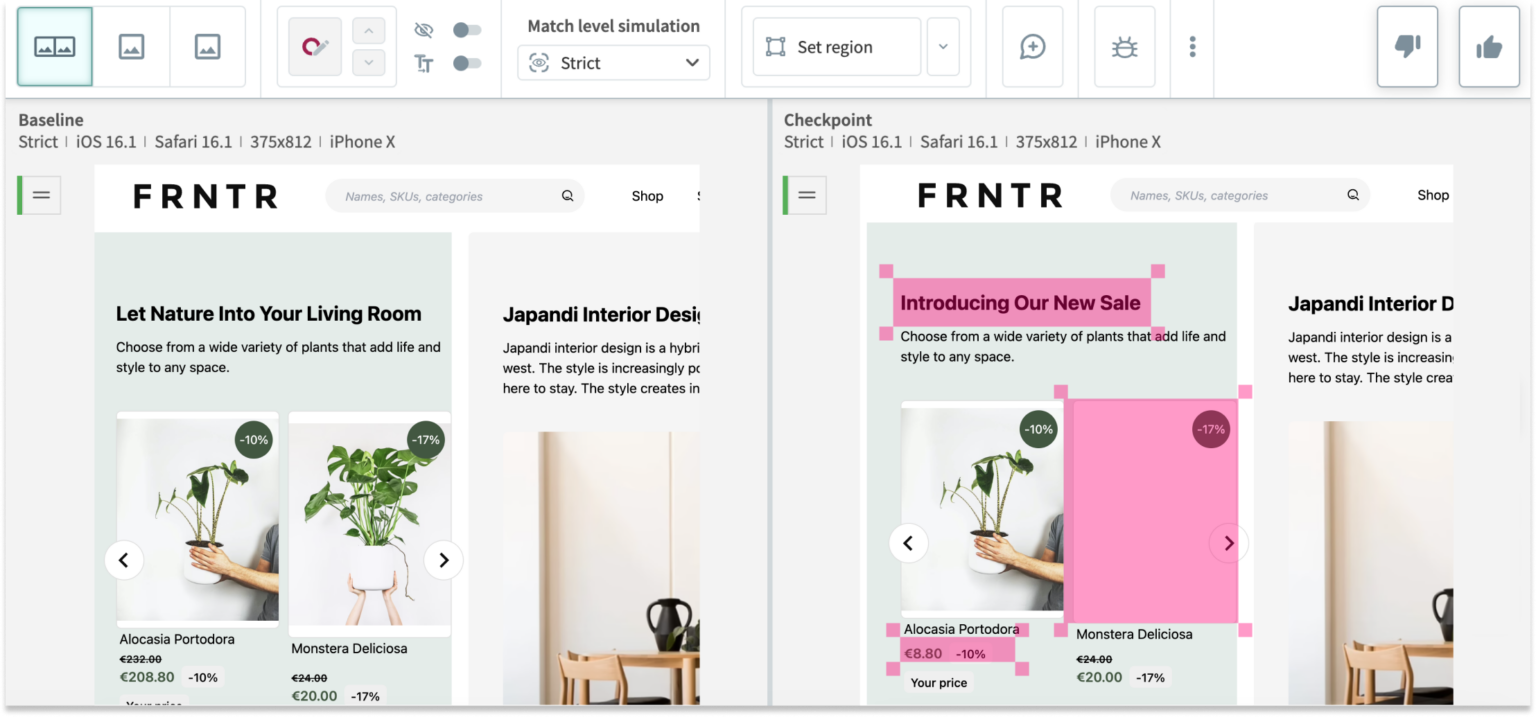

AI-assisted or perceptual comparison attempts to identify differences that would matter to a person. For example, it may distinguish between browser-rendering noise and a button that has genuinely moved. Applitools documents separate comparison modes for strict visual checks, layout validation, colour-independent comparison, and dynamic content handling. These modes can also be assigned to individual page regions.

Where AI Adds Measurable Value

Detecting Meaningful Visual Changes

AI-assisted comparison can find problems that DOM assertions and functional tests often miss. A test may confirm that a checkout button exists and responds to clicks, even though another component partially covers it. Screenshot-based validation examines the interface the user actually receives.

Useful detections include:

• Overlapping or clipped elements
• Missing images and icons
• Incorrect fonts, colours, or spacing
• Unexpected text wrapping
• Components appearing in the wrong position
• Content overflowing its container
• Responsive layouts failing at particular widths
• Elements hidden behind overlays

Reducing Visual Test Noise

Small rendering differences can make exact pixel tests difficult to maintain. Perceptual comparison can reduce alerts caused by insignificant variations and allow teams to focus on changes that may affect the experience.

This does not eliminate false positives. It changes how teams control them. Stable test environments, appropriate comparison modes, and carefully defined ignore regions remain essential.

Expanding Cross-Browser Coverage

Capturing every critical screen manually in every browser is slow. Managed platforms can render snapshots across selected browsers and screen sizes automatically.

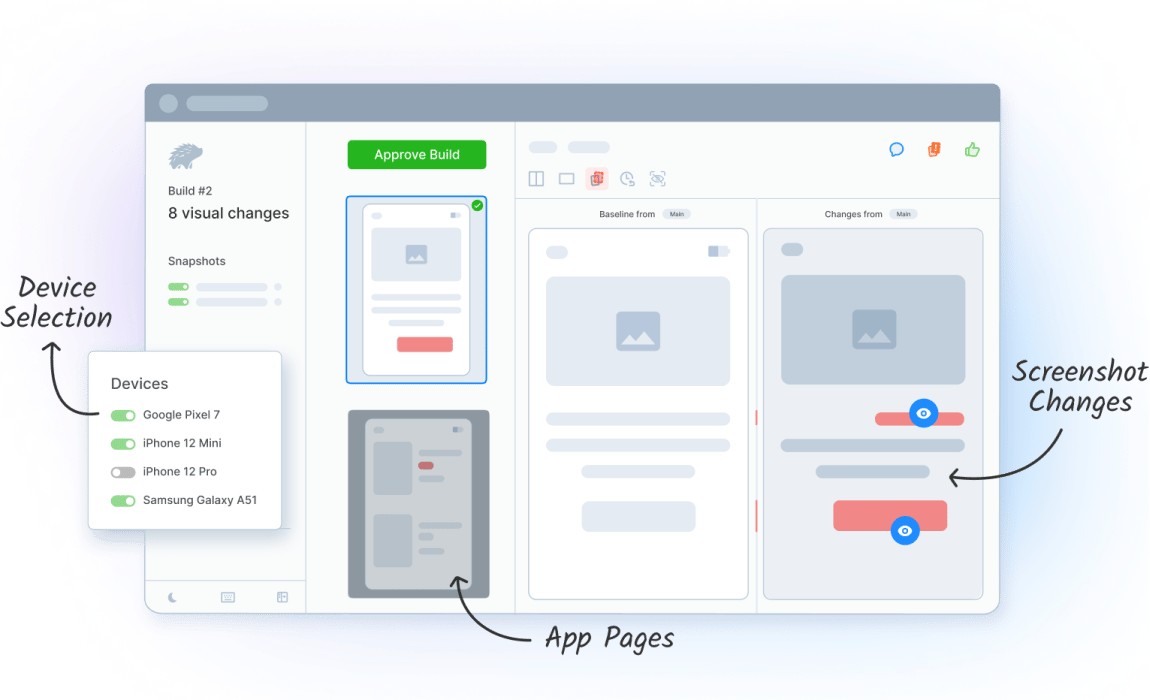

BrowserStack Percy, for example, supports baseline comparison, responsive widths, cross-browser testing, highlighted visual differences, ignore regions, and build approval workflows. Its current offering also includes an optional AI-powered Visual Review Agent.

However, browser emulation and real-device execution should not be treated as identical. Real devices remain valuable when defects may depend on operating-system behaviour, device hardware, native controls, input methods, or mobile browser features.

Accelerating Review and Triage

At scale, detecting differences is only half the challenge. Teams must review hundreds or thousands of snapshots without allowing visual approvals to delay delivery.

Modern platforms can group similar differences, connect results to pull requests, and let reviewers approve related changes together. This reduces repetitive work when one CSS update affects the same component across many pages.

Protecting Shared Components

A small change to a design-system component can affect every page where it appears. Component-level visual testing catches these issues before the component reaches integrated pages.

For Storybook-based component libraries, Chromatic captures component states and compares them with baselines tied to Git history. It can also run visual tests through Playwright or Cypress.

AI-Assisted Testing Versus Pixel Comparison

The best visual testing system normally combines automated detection with human approval. Automation narrows the review surface; people provide the intent that an algorithm cannot infer reliably.

Comparing UI Consistency Testing Tools

Not every visual comparison tool uses AI. Grouping all commercial and open-source options under “AI testing tools” creates a misleading comparison.

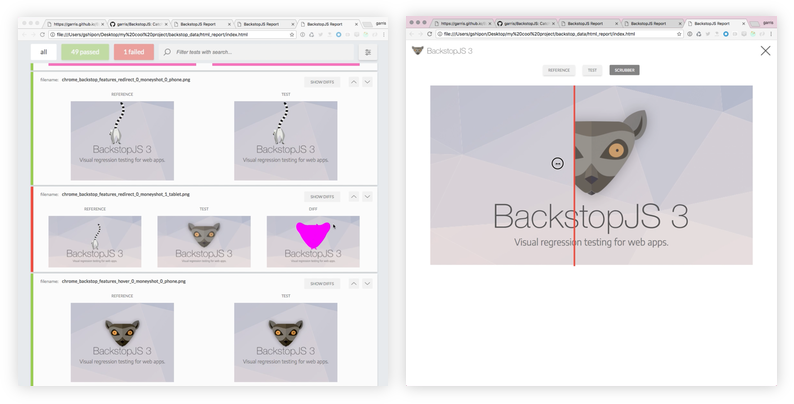

BackstopJS automates screenshot capture and visual comparison and supports scripted interactions through Playwright and Puppeteer. It is a capable open-source visual regression tool, but its official project does not position it as an AI platform.

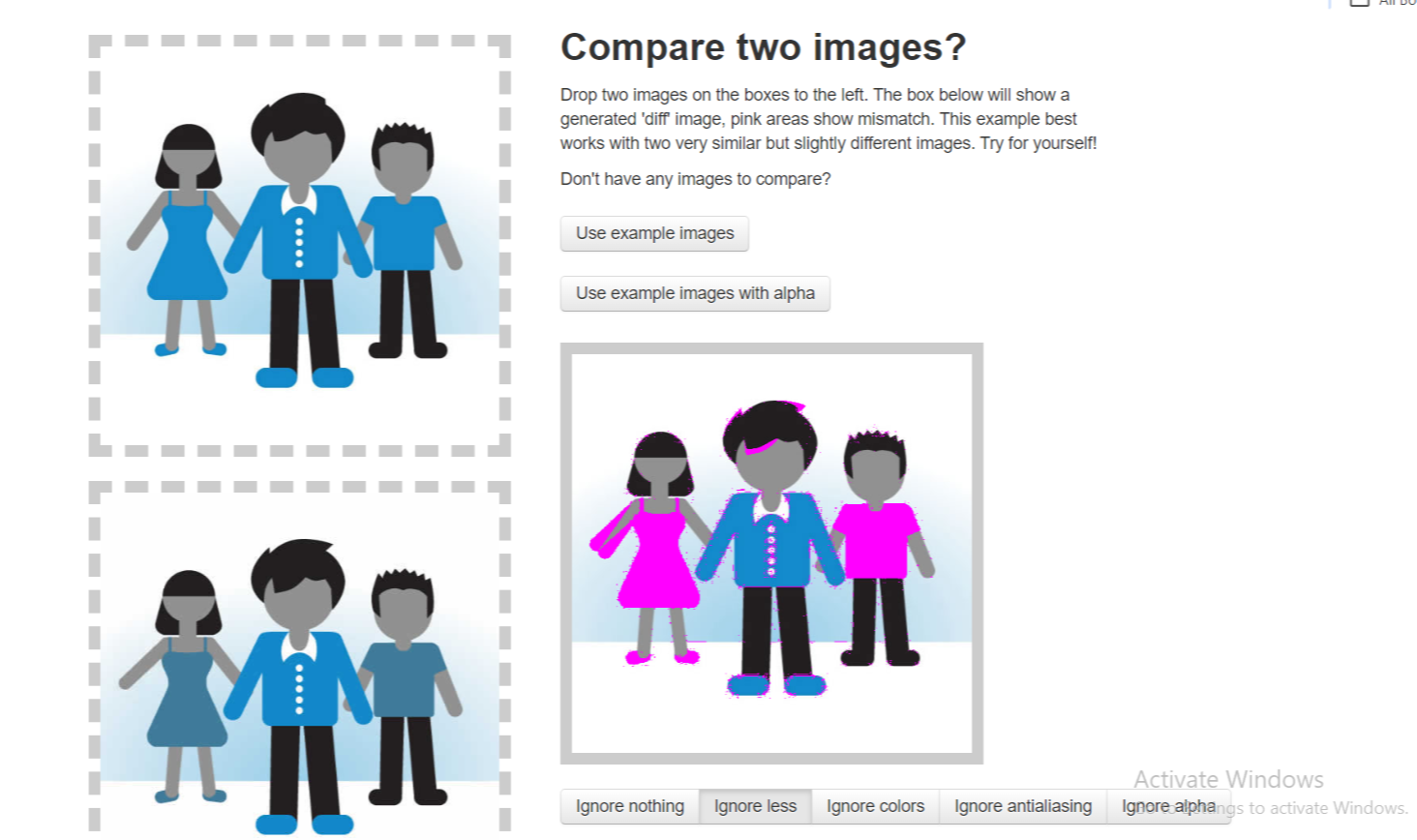

Similarly, Resemble.js analyzes and compares images in JavaScript. It can calculate differences and account for anti-aliasing, but teams must build much of the surrounding execution and review workflow themselves.

How to Implement AI-Assisted UI Consistency Testing

1. Define the Interface Risk

Do not begin by capturing every screen. Identify the journeys and components where a visual defect could prevent a transaction, damage trust, or affect many users.

Good initial candidates include authentication, checkout, account management, dashboards, navigation, forms, shared design-system components, and responsive mobile layouts.

2. Create a Deliberate Coverage Matrix

Document the supported browsers, viewport sizes, themes, languages, user roles, and relevant component states. Choose combinations based on user analytics and business risk rather than testing every theoretical possibility.

The matrix should be broad enough to find platform-specific problems but small enough to execute and review consistently.

3. Stabilize the Test Environment

Visual comparisons become unreliable when the page changes for reasons unrelated to the release. Before taking a screenshot:

• Disable animations and transitions.
• Use deterministic test accounts and data.
• Freeze dates, times, and random values when practical.
• Wait for fonts, images, and asynchronous content.
• Mask advertisements, rotating banners, or live counters.
• Control the browser version, viewport, device scale, and locale.

Ignore regions should be used carefully. Masking a constantly changing timestamp may reduce noise; masking an entire transaction table could conceal a genuine layout failure.

4. Capture Trusted Baselines

A baseline is not simply the first screenshot produced by the tool. It must represent an interface that has been reviewed and accepted.

Store separate baselines when the expected appearance genuinely differs by browser, viewport, theme, language, or application state. Reusing one baseline across incompatible environments creates unnecessary differences and weakens trust in the suite.

5. Integrate Tests Into CI/CD

Run focused visual tests on pull requests so developers receive feedback while the change is still fresh. Larger cross-browser suites can run before release or on a scheduled basis if executing them for every commit is too costly.

A failed visual comparison should produce an accessible diff, environment details, the relevant baseline, and a link to the originating change. A simple “screenshots differ” message is not enough for efficient diagnosis.

6. Keep Approval Human-Governed

An accepted difference changes what future tests consider correct. Baseline approval should therefore be treated like code review, not routine test cleanup.

Reviewers should ask:

• Was this visual change included in the requirement?
• Is it correct at every affected breakpoint?
• Has the design or product owner approved it?
• Did a shared component cause unexpected changes elsewhere?
• Could approving this snapshot hide another defect?

7. Measure the System

Track whether visual testing is improving delivery rather than merely generating screenshots. Useful measures include false-positive rate, average review time, escaped visual defects, browser and state coverage, baseline-update frequency, and visual-test execution cost.

A test suite that regularly fails for irrelevant reasons eventually gets ignored. Trust is therefore one of the most important visual testing metrics.

A Practical Example

Suppose an e-commerce team changes the CSS for its shared product-card component. Functional tests confirm that product names appear, prices are correct, and “Add to cart” still works.

Visual tests run the component at mobile, tablet, and desktop widths. The desktop snapshots pass, but the mobile comparison reveals that long product names now push the purchase button below the card boundary.

The defect would not necessarily fail a conventional functional assertion because every element still exists. Visual comparison catches it because the rendered relationship between those elements has changed.

The team fixes the responsive CSS, reruns the snapshots, and approves the corrected result. This is the kind of defect for which visual testing provides clear value.

Limitations of AI in UI Testing

AI does not know the complete intent behind a design. It may identify that a component moved, but it cannot always determine whether the move improves the experience or violates a requirement.

Visual testing also cannot reliably prove:

• That an interaction completes the correct business process
• That controls have accessible names or correct semantic roles
• That keyboard navigation and screen-reader behaviour work
• That the interface is easy to understand
• That displayed values are logically correct
• That every intended requirement has been implemented

For this reason, visual testing should operate alongside functional automation, accessibility testing, exploratory testing, usability research, and human design review.

Paid or Open Source: Which Should You Choose?

A commercial platform generally makes sense when the application has a broad browser matrix, frequent releases, many visual checkpoints, and several reviewers. Managed rendering, intelligent comparison, baseline governance, and collaborative review can offset licensing costs by reducing maintenance and triage work.

An open-source approach may be more valuable when the test matrix is small, budget or data control is a priority, and the team has the engineering capacity to maintain screenshot infrastructure. BackstopJS provides a usable visual regression workflow, while Resemble.js is better viewed as a building block for a custom solution.

The decision should be based on total operating cost—not licence price alone. Include the time required to configure browsers, stabilize screenshots, store baselines, review results, manage flaky comparisons, and maintain the infrastructure.

Frequently Asked Questions

1. What is AI-based UI consistency testing?

It is the use of visual comparison and perceptual analysis to identify unintended interface differences across software versions, browsers, devices, viewports, and application states.

2. Is visual testing the same as functional testing?

No. Functional testing verifies what the application does, while visual testing examines how the rendered interface appears. A feature can behave correctly while still containing serious layout defects.

3. Can AI replace manual UI testing?

No. AI can automate repetitive comparisons and prioritize differences, but people must still evaluate design intent, usability, accessibility, and whether a change should be approved.

4. Why do visual tests produce false positives?

Common causes include animations, timestamps, changing data, delayed images, advertisements, font-loading differences, anti-aliasing, inconsistent viewport settings, and unstable test environments.

5. Are BackstopJS and Resemble.js AI tools?

No. They are open-source visual comparison technologies. They can support effective visual regression testing, but they should not be positioned as AI-powered testing platforms.

6. Should every page receive visual testing?

Not initially. Start with shared components and high-risk journeys where visual defects could block users, affect revenue, damage trust, or spread across many parts of the product.

7. Does visual testing replace accessibility testing?

No. Screenshots cannot reliably validate semantic markup, accessible names, keyboard operation, focus order, or screen-reader output. Dedicated accessibility testing remains necessary.

8. When should a visual baseline be updated?

Update it only after confirming that the difference is intentional, correct across relevant environments, and approved by the appropriate reviewer. Never update baselines merely to make a test pass.

Conclusion

AI-assisted visual testing makes UI consistency testing faster and more scalable, especially across large browser, device, and viewport matrices. Its greatest value is not taking screenshots, it is helping teams distinguish meaningful regressions from irrelevant rendering noise and directing human attention to the changes that require judgment.

However, reliable results depend on more than the comparison algorithm. Teams need controlled environments, risk-based coverage, trusted baselines, disciplined approvals, and supporting functional and accessibility tests.

The right solution may be an AI-assisted commercial platform, an open-source visual regression framework, or a combination of both. What matters is building a workflow that detects user-facing inconsistencies early without overwhelming the team with noise.
